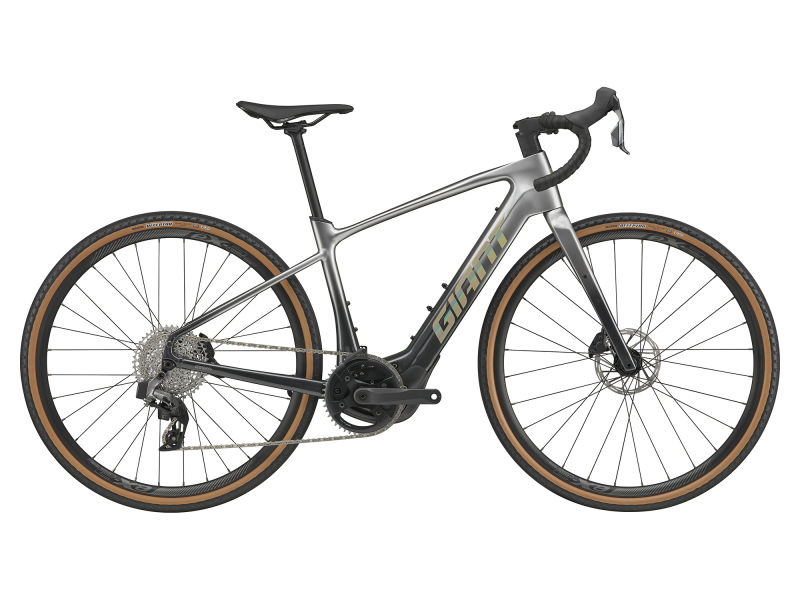

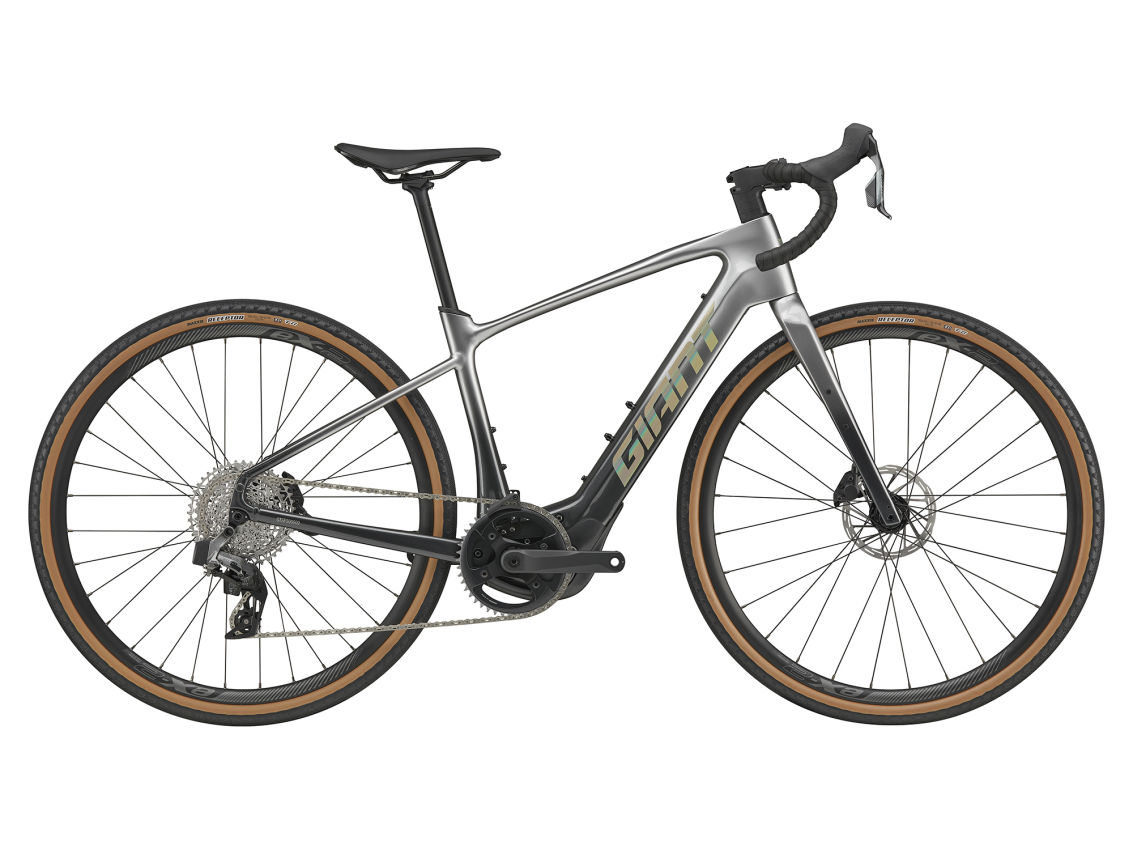

Revolt E+ 1

Similar Products

:

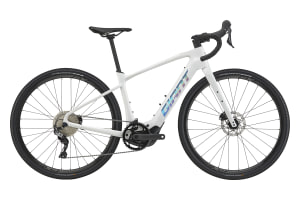

Revolt E+ 2

Skip to compare section

From rough roads to gravel, dirt and mixed terrain adventures, this versatile drop bar E-bike gives you the power to ride farther and faster on any route you can dream up.

Key Performance Factors

Unlimited adventure

The SyncDrive Sport 2 motor is built for riders who want an E-bike that can do it all. With 75Nm of torque, it offers strong, controlled performance even at low speeds, giving you confidence and stability on every ride.

Powerful, integrated battery

EnergyPak Smart Compact 400 battery delivers long-distance pedaling support and is seamlessly integrated into the frame for a sleek overall profile.

System simplicity

Smart Assist Technology utilizes multiple sensors to automatically adjust to your pace and terrain, delivering a smooth, natural riding experience with ample power when needed, while also conserving energy when less is required.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

EnergyPak Smart 400 / SyncDrive Sport

  • Range
  • Extreme: 45 km 27 miles
  • Good: 90 km 55 miles
  • Ideal: 150 km 93 miles

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      155 cm5’1” to 164 cm5’5”
  • S
      161 cm5’3” to 171 cm5’7”
  • M
      168 cm5’6” to 178 cm5’10”
  • ML
      175 cm5’9” to 185 cm6’1”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 XSSMML
A Seat Tube Length (mm) (inch)42016.545017.747518.750019.7
B Seat Tube Angle (degrees)75.0°75.0°74.0°74.0°
C Top Tube Length (mm) (inch)55021.75602257022.458022.8
D Head Tube Length (mm) (inch)1355.31355.31505.91656.5
E Head Tube Angle (degrees)71.0°71.0°71.0°71.0°
F Fork Rake (mm) (inch)502502502502
G Trail (mm) (inch)662.6662.6662.6662.6
H Wheelbase (mm) (inch)106942.1107842.4107942.5109042.9
I Chain Stay Length (mm) (inch)45517.945517.945517.945517.9
J Bottom Bracket Drop (mm) (inch)753753753753
K Stack (mm) (inch)56322.256322.257722.759223.3
L Reach (mm) (inch)39915.740816.140415.941016.1
M Stand Over Height (mm) (inch)70227.671728.273428.975329.6
N Handlebar Width (mm) (inch)40015.740015.742016.542016.5
O Stem Length (mm) (inch)602.4602.4602.4602.4
P Crank Length (mm) (inch)1706.71706.71706.71706.7
Q Wheel Size 700C700C700C700C
Specs
  • Motor
    SyncDrive Sport2, 75Nm, powered by Yamaha
  • Controller
    Mode support switch from SRAM Blips, 5 power levels plus Smart Assist auto mode
  • Display
    RideControl GO, frame integrated LED console optional ANT+ wireless display compatible
  • Battery
    EnergyPak 400Wh, alloy casing with highest safety standard (EN50604), CO2 neutral production EnergyPak Plus 200Wh range extender compatible
  • Charger
    EnergyPak 4A smart charger, 60% in 1:45h
  • Sizes
    XS, S, M, M/L
  • Colours
    Galaxy Silver
  • Frame
    ALUXX SL-grade aluminum,1.125" - 1.25" head tube, 12x142 thru-axle, KSA18 kickstand mount
  • Fork
    Advanced-grade composite, 12x100mm thru-axle
  • Shock
    N/A
  • Handlebar
    Giant Contact XR D-Fuse, 31.8mm
  • Grips
    Cork tape with gel
  • Stem
    Giant Contact AeroLight, -10 degree
  • Seatpost
    Giant D-Fuse, alloy, 14mm offset
  • Saddle
    Giant Approach
  • Pedals
    N/A
  • Shifters
    N/A
  • Front Derailleur
    N/A
  • Rear Derailleur
    SRAM Rival XPLR AXS D1
  • Brakes
    SRAM Rival hydraulic SRAM PaceLine rotors [F] 160mm, [R] 160mm
  • Brake Levers
    SRAM Rival AXS E1
  • Cassette
    SRAM XPLR XG-1251, 12-speed, 10x44
  • Chain
    SRAM Rival E1
  • Crankset
    FSA E-crank alloy, SRAM X-SYNC chain ring 46t, 107BCD
  • Bottom Bracket
    N/A
  • Rims
    Giant eX 2 Disc wheelset, alloy, tubeless ready, 22mm IW, 24mm H
  • Hubs
    Giant eTracker, [F] 100x12mm thru-axle, [R] 142x12mm thru-axle
  • Spokes
    Sapim [F] Race, [R] E-Lite, e-bike optimized
  • Tires
    Maxxis Receptor, 700X40c, folding, TLR, EXO, 120TPI
  • Extras
    Tubeless kit (liquid, valves, levers, manual, tool)
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
